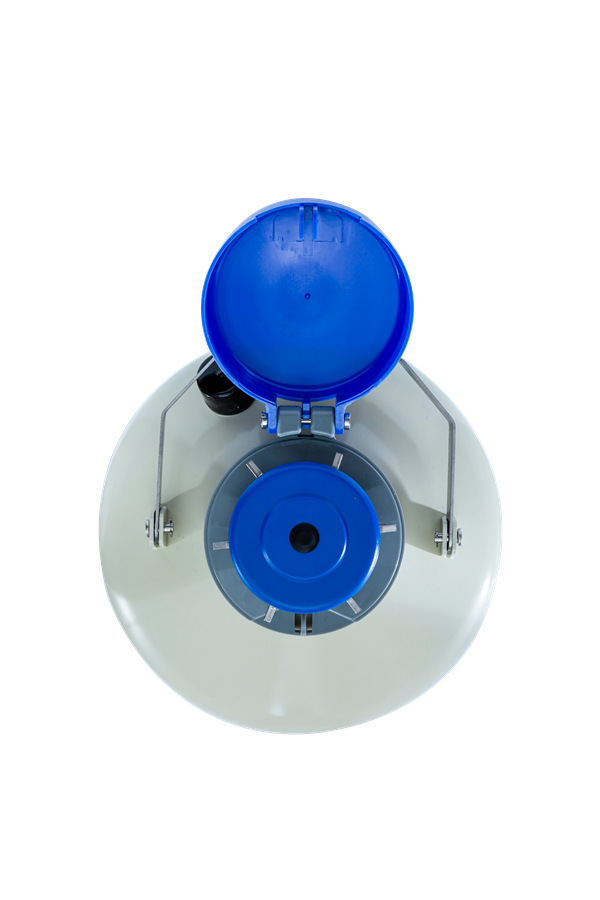

YDS-3
    Publish time 2021-03-24 12:05
YDS-3

These small capacity containers are designed for transferring biological samples stored via manual work,especially for less static evaporation loss and more economical use.


Main Features:

◆High-strength aluminum alloy structure, light empty weight;

◆Portable hinged handle;

◆Optional locking cover to protect stored biological samples;

◆Encoding system on canisters for easy recognition and access of samples;

◆Over 5-year vacuum quality guarantee with multi-layer insulation;


Model

Unit

YDS-3

Capacity

L

3

Empty Weight

Kg

3.1

Neck Diameter

mm

50

Outer Diameter

mm

223

Height

mm

425

Static Evaporation Loss

L/d

0.12

Static Holding Time

d

26

Canister Outer Diameter

mm

38

Canister Height

mm

120

Number of Canisters

n

6

Straw Holding Capacity
    (single level)

0.5ml

792

0.25ml

1788
