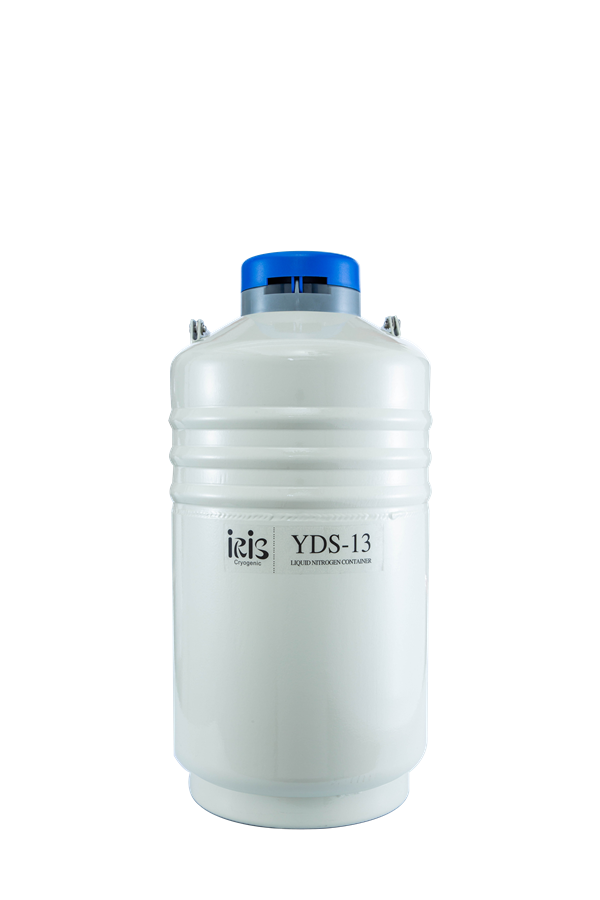

Bio Medical Liquid Nitrogen Container

YDS-13
    Publish time 2021-03-29 08:02
YDS-13

These moderate capacity containers are the best choices for customers who will store biological samples or liquid nitrogen indoors for a long period under static environment.


Main Features:

High-strength aluminum alloy structure;

Optional locking cover to protect stored biological samples;

Encoding system on canisters for easy recognition and access of samples;

◆Over 5-year vacuum quality guarantee with multi-layer insulation;


Model

Unit

YDS-13

Capacity

L

13.0

Empty Weight

Kg

6.3

Neck Diameter

mm

50

Outer Diameter

mm

300

Height

mm

623

     Static Evaporation Loss Mass

L/d

0.12

   Static Holding Time

d

109

Canister Outer Diameter

mm

38

Canister Height

mm

276

Number of Canisters

n

6

Straw Holding Capacity
(single level)

  0.5ml

         1284

  0.25ml

         2832

Straw Holding Capacity
(double level)

  0.5ml

   0.25ml
