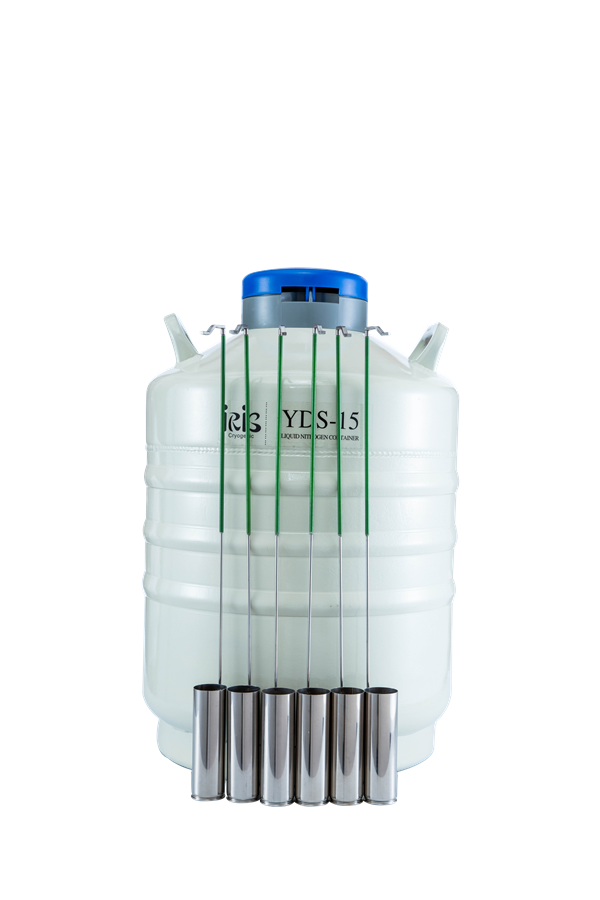

Bio Medical Liquid Nitrogen Container

YDS-15
    Publish time 2021-03-29 08:36
YDS-15

These moderate capacity containers are the best choices for customers who will store biological samples or liquid nitrogen indoors for a long period under static environment.


Main Features:

High-strength aluminum alloy structure;

Optional locking cover to protect stored biological samples;

Encoding system on canisters for easy recognition and access of samples;

◆Over 5-year vacuum quality guarantee with multi-layer insulation;


Model

Unit

       YDS-15

Capacity

L

15.0

Empty Weight

Kg

8.5

Neck Diameter

mm

50

Outer Diameter

mm

396

Height

mm

591

       Static Evaporation Loss Mass

L/d

0.12

Static Holding Time

d

135

Canister Outer Diameter

mm

38

Canister Height

mm

120

Number of Canisters

n

6

Straw Holding Capacity
(single level)

    0.5ml

792

    0.25ml

1788

Straw Holding Capacity
(double level)

    0.5ml

   0.25ml
